@emmorts/body-muscles

Body Muscles

An interactive, accessible SVG body map for the web.

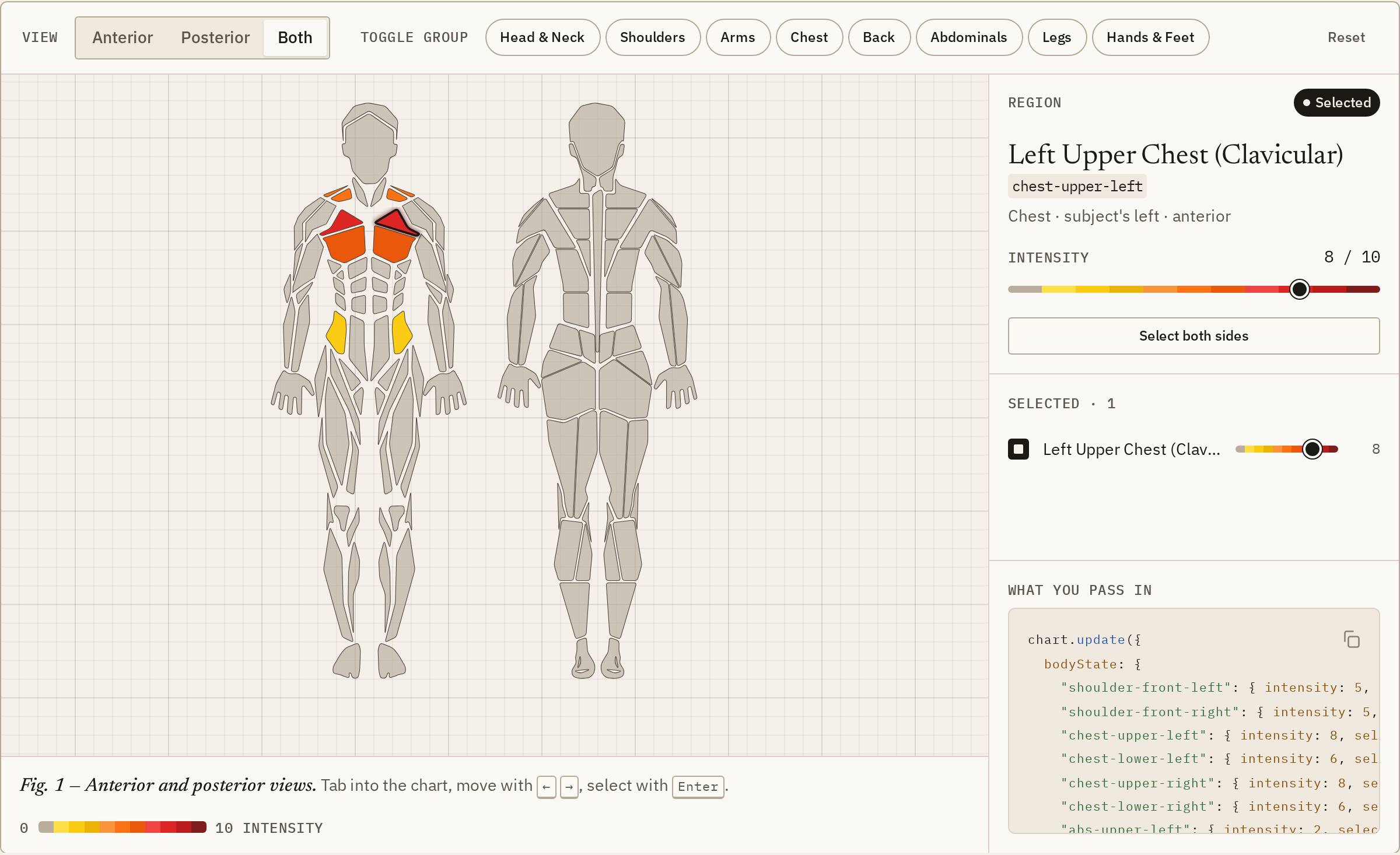

Documentation · Live playground · Examples · Changelog

You own the state — an intensity from 0 to 10 and a selected flag per region — and Body Muscles draws it, handles pointer and keyboard interaction, and labels every region. It is plain DOM, so it works with React, Vue, Svelte, Angular, or no framework at all.

• 89 anatomical regions across anterior and posterior views, with name, side, and group metadata
• Accessible by default — one tab stop, arrow-key navigation, toggle-button semantics, focus tooltips
• Typed identifiers — a misspelled region identifier is a compile error
• Selection helpers — pure functions that select a whole group or both sides of a region
• Themeable and localizable — --bm-* CSS custom properties and replaceable labels
• Data without a DOM — /data and /data.json entry points for servers and custom renderers
• Zero dependencies — ESM, CommonJS, and a browser build (about 23 KB gzipped)

This is a maintained fork of vulovix/body-muscles — see Credits.

Installation

npm install @emmorts/body-muscles
pnpm add @emmorts/body-muscles
yarn add @emmorts/body-muscles
bun add @emmorts/body-muscles

[!NOTE] TypeScript consumers need TypeScript 5.0 or later: the declarations use const type parameters, which older compilers cannot parse even with skipLibCheck. JavaScript needs no compiler, and the runtime supports Node 16+.

Without a build step

<!-- Native ES module -->
<script type="module">
  import { BodyChart, ViewSide } from "https://esm.sh/@emmorts/body-muscles";
</script>

<!-- Classic script exposing a BodyMuscles global; also works from file:// -->
<script src="https://unpkg.com/@emmorts/body-muscles/dist/umd/body-muscles.umd.min.js"></script>

Quick start

import { BodyChart, ViewSide, type BodyState } from "@emmorts/body-muscles";

const container = document.querySelector<HTMLElement>("#body-map");
if (!container) throw new Error("Missing #body-map");

let state: BodyState = {
  "biceps-left": { intensity: 7, selected: true },
  "quads-right": { intensity: 3, selected: false },
};

const chart = new BodyChart(container, {
  view: ViewSide.BOTH,
  bodyState: state,
  onMuscleClick(id) {
    const current = state[id] ?? { intensity: 0, selected: false };
    state = { ...state, [id]: { ...current, selected: !current.selected } };
    chart.update({ bodyState: state });
  },
});

// Later: switch views in place, and destroy the chart when its widget is removed.
chart.update({ view: ViewSide.FRONT });
chart.destroy();

The chart fills its container's width. Leave it mounted across page navigation so the browser's back/forward cache can restore it; call destroy() only when you remove the widget.

Guides

State

update() merges options shallowly and ignores undefined values. bodyState, however, is replaced as a whole: a region missing from the new mapping returns to intensity 0, unselected. The chart never mutates your mapping and keeps no selection state of its own, so your application remains the single source of truth.

// Keep every other region and change one.
chart.update({ bodyState: { ...state, "biceps-left": { intensity: 7, selected: true } } });

// Remove one region's state.
const { "biceps-left": removed, ...rest } = state;
chart.update({ bodyState: rest });

There is deliberately no separate patch method: a spread expresses both preservation and removal, and a second entry point with different merge rules would be easy to mix up. Changing view or interactive rebuilds the chart; every other update applies in place and keeps keyboard focus and any open tooltip.

Intensity values

An intensity is a finite integer from 0 to 10. The constructor, update(), and createBodyPartState() throw a descriptive error for fractions, negatives, values above 10, NaN, or infinities, and a rejected update() applies none of the submitted options.

isValidIntensity(9); // true
isValidIntensity(9.5); // false

// Error: Invalid bodyState entry for "biceps-left": intensity 12. Expected an integer from 0 to 10.
chart.update({ bodyState: { "biceps-left": { intensity: 12, selected: true } } });

[!IMPORTANT] The chart holds your mapping by reference, so a rejected update cannot undo mutations you already made to an accepted object. Validate before mutating shared state, or submit a new mapping.

The colour helpers (resolveIntensityColor, createIntensityColorScale, getMuscleColor) never throw: they round and clamp into 0–10, because they also render mappings mutated after the chart accepted them.

Group and bilateral selection

Two pure helpers return a new state for a whole group, or for a region and its opposite side:

import { setBilateralSelection, setGroupSelection } from "@emmorts/body-muscles";

state = setGroupSelection(state, "Arms", "toggle");
state = setBilateralSelection(state, "biceps-right", "select");
chart.update({ bodyState: state });

• Actions are explicit: "select", "deselect", or "toggle". Toggle deselects a fully selected target and otherwise selects all of it.
• Groups span both views. Pairs come from MUSCLE_PAIRS, never identifier substitution; either side addresses the same pair, and central regions such as spine act alone.
• Existing intensities and unrelated entries are kept. Selecting a missing entry creates { intensity: 0, selected: true }; deselecting a missing entry leaves it absent.
• Inputs are never mutated. A no-op returns the same mapping, and unchanged entries are shared.

Typed identifiers

MuscleId is a union derived from the dataset, so state keys, callbacks, and helpers are checked at compile time:

const state: BodyState = {
  "biceps-left": { intensity: 7, selected: true }, // ok
  "bicepz-left": { intensity: 7, selected: true }, // error: not a region identifier
};

Identifiers that only exist at runtime — URL parameters, stored state, user input — must be narrowed before they are used as keys:

const raw = new URLSearchParams(location.search).get("muscle") ?? "";

const state: BodyState = isMuscleId(raw) ? { [raw]: createBodyPartState(5) } : {};
const name = getMuscleDef(raw)?.name ?? "unknown"; // accepts any string

Identifiers follow {group}-{side} (biceps-left), {group}-{part}-{side} (shoulder-front-left), or a single word for central regions (spine). Read side and group from the metadata rather than parsing identifiers.

Accessibility

An interactive chart is one composite widget with a single tab stop. Each region is a toggle button whose pressed state follows selected, so selection is never conveyed by colour alone, and keyboard focus has its own high-contrast halo.

Set interactive: false for a display-only chart, announced as a single labelled image: regions are not focusable or clickable, callbacks never fire, and no tooltip renders. Use ariaLabel to name the chart in either mode.

[!NOTE] Verified with keyboard interaction, Chromium's accessibility tree, and automated audits. Screen-reader announcements and browse-mode behaviour have not been verified, and these checks do not establish full WCAG conformance.

Theming

Every chart style reads a --bm-* custom property with the built-in value as its fallback, so nothing changes until you override one. Set them on the container or any ancestor:

.body-map {
  --bm-max-height: 55vh;
  --bm-region-stroke: #0f172a;
  --bm-region-stroke-selected: #f8fafc;
  --bm-region-inactive-opacity: 0.4;
  --bm-tooltip-bg: rgb(15 23 42 / 0.95);
}

Selection draws its own outline and glow, and keyboard focus a separate dual-tone halo, so both stay distinguishable from any intensity palette.

Colour mapping

Region fill comes from the intensityColor resolver, which defaults to the INTENSITY_COLORS palette (slate → yellow → orange → red). Build one from your own stops; intensities are rounded and clamped into 0–10, and missing levels fall back to the default palette:

const chart = new BodyChart(container, {
  view: ViewSide.FRONT,
  bodyState: {},
  intensityColor: createIntensityColorScale({ 0: "var(--app-rest, #e5e7eb)", 5: "#f59e0b", 10: "#dc2626" }),
});

A resolver may return any valid CSS colour, including var() expressions. The browser resolves them on each region, so they follow theme changes without an update(). getAttribute("fill") returns the expression; getComputedStyle(region).fill returns the resolved colour.

Reduced motion

Transitions are on by default. When the system requests reduced motion, chart and tooltip transitions are disabled regardless of enableTransitions, and the preference is re-evaluated if it changes at runtime. --bm-transition-duration changes timing but never re-enables motion.

Localization

Every rendered string comes from the optional labels members, falling back to English. A dedicated option beats the matching member: ariaLabel over labels.chart, and tooltipFormatter over labels.tooltip.

const labels: ChartLabels = {
  chart: () => "Körperkarte",
  regionName: (muscle) => GERMAN_NAMES[muscle.id] ?? muscle.name,
  intensity: (value) => `Intensität ${value}`,
  viewLabel: (view) => (view === ViewSide.FRONT ? "Vorderansicht" : "Rückansicht"),
};

chart.update({ labels: { ...labels, intensity: (value) => `${value} von 10` } });

Like bodyState, labels is replaced as a whole and applied in place without dropping focus. Explicitly passing labels refreshes every label, even when you mutate and resubmit the same object. region, tooltip, and tooltipFormatter receive undefined for regions missing from state, and the supplied object otherwise — including an explicit intensity 0.

Anatomy and terminology

The dataset describes regions, not a muscle-by-muscle inventory: alongside individual muscles it includes areas such as head, nape, spine, and knee-left. Sides are the subject's own, as in an anatomy atlas, so biceps-left is drawn on the viewer's right.

MUSCLE_METADATA["biceps-left"];
// { id: "biceps-left", name: "Left Biceps", view: "FRONT", side: "left", group: "Arms" }

getMuscleMetadata(input); // MuscleMetadata | undefined, for untrusted strings

MUSCLE_GROUPS is checked at compile time against the dataset and verified at build time to cover every region exactly once. extractMuscleGroup(id) returns the identifier prefix ("biceps"), not the display group — use MUSCLE_METADATA[id].group for that. The region catalog lists every region with front/back previews, generated from these exports.

Data without a DOM

Server code, native apps, and custom renderers can import the anatomy alone. The /data subpath never loads chart code or touches browser globals:

import { MUSCLE_MAP, MUSCLE_METADATA, INTENSITY_COLORS } from "@emmorts/body-muscles/data";
const { MUSCLE_MAP } = require("@emmorts/body-muscles/data"); // CommonJS

It exports MUSCLE_MAP, MUSCLE_DEFS, MUSCLE_METADATA, MUSCLE_GROUPS, MUSCLE_PAIRS, FRONT_MUSCLES, BACK_MUSCLES, INTENSITY_COLORS, and the getMuscleDef / getMuscleMetadata / isMuscleId lookups. For consumers that cannot run JavaScript, the geometry and palette also ship as JSON at @emmorts/body-muscles/data.json:

{
  "schemaVersion": 1, // bumped only when the shape changes incompatibly
  "intensityColors": ["#94a3b8", "…"], // 11 CSS colours, index 0–10
  "frontMuscles": [{ "id": "head", "name": "Head", "view": "FRONT", "path": "M 11.639,…" }],
  "backMuscles": [{ "id": "head-back", "name": "Head (Posterior)", "view": "BACK", "path": "M …" }]
}

Import it with import data from "@emmorts/body-muscles/data.json" with { type: "json" } (Node 20.10+ or Bun), require(), or read the file from any language. The module subpaths work in Node 16+.

Frameworks

The chart is plain DOM, so every framework integrates the same way: create it once the container exists, forward state with update(), and destroy it on unmount. Runnable vanilla TypeScript and React projects, including a server-rendered path, live in examples/.

import { useEffect, useRef, useState } from "react";
import { BodyChart, ViewSide } from "@emmorts/body-muscles";

export function BodyMap({ view = ViewSide.FRONT }) {
  const containerRef = useRef(null);
  const chartRef = useRef(null);
  const [bodyState, setBodyState] = useState({});

  // Read state through a ref so the instance effect depends only on `view`.
  const latest = useRef(bodyState);
  latest.current = bodyState;

  useEffect(() => {
    const container = containerRef.current;
    if (!container) return undefined;
    const chart = new BodyChart(container, {
      view,
      bodyState: latest.current,
      onMuscleClick(id) {
        setBodyState((prev) => ({
          ...prev,
          [id]: { intensity: prev[id]?.intensity ?? 0, selected: !prev[id]?.selected },
        }));
      },
    });
    chartRef.current = chart;
    return () => {
      chart.destroy();
      chartRef.current = null;
    };
  }, [view]);

  // State changes apply in place, preserving focus.
  useEffect(() => {
    chartRef.current?.update({ bodyState });
  }, [bodyState]);

  return <div ref={containerRef} />;
}

<script setup>
import { onMounted, onUnmounted, ref, watch } from "vue";
import { BodyChart, ViewSide } from "@emmorts/body-muscles";

const container = ref(null);
const bodyState = ref({});
let chart;

onMounted(() => {
  chart = new BodyChart(container.value, {
    view: ViewSide.FRONT,
    bodyState: bodyState.value,
    onMuscleClick(id) {
      const current = bodyState.value[id] ?? { intensity: 0, selected: false };
      bodyState.value = { ...bodyState.value, [id]: { ...current, selected: !current.selected } };
    },
  });
});

watch(bodyState, (state) => chart?.update({ bodyState: state }));
onUnmounted(() => chart?.destroy());
</script>

<template>
  <div ref="container" />
</template>

<script>
  import { onDestroy, onMount } from "svelte";
  import { BodyChart, ViewSide } from "@emmorts/body-muscles";

  let container;
  let chart;
  let bodyState = {};

  onMount(() => {
    chart = new BodyChart(container, {
      view: ViewSide.FRONT,
      bodyState,
      onMuscleClick(id) {
        const current = bodyState[id] ?? { intensity: 0, selected: false };
        bodyState = { ...bodyState, [id]: { ...current, selected: !current.selected } };
        chart.update({ bodyState });
      },
    });
  });

  onDestroy(() => chart?.destroy());
</script>

<div bind:this={container} />

<div id="body-map"></div>
<script src="https://unpkg.com/@emmorts/body-muscles/dist/umd/body-muscles.umd.min.js"></script>
<script>
  const { BodyChart, ViewSide } = BodyMuscles;

  let state = {};
  const chart = new BodyChart(document.getElementById("body-map"), {
    view: ViewSide.FRONT,
    bodyState: state,
    onMuscleClick(id) {
      const current = state[id] ?? { intensity: 0, selected: false };
      state = { ...state, [id]: { ...current, selected: !current.selected } };
      chart.update({ bodyState: state });
    },
  });
</script>

API reference

new BodyChart(container, options)

Mounts a chart inside container. Options set to undefined use their defaults; an explicit false is kept.

Types

enum ViewSide { FRONT = "FRONT", BACK = "BACK", BOTH = "BOTH" }

type MuscleId = "head" | "face" | "neck-left" | /* … 89 in total … */ "foot-back-right";

interface BodyPartState {
  intensity: number; // integer 0–10
  selected: boolean;
}
type BodyState = Partial<Record<MuscleId, BodyPartState>>;

type IntensityColorResolver = (intensity: number) => string;
type SelectionAction = "select" | "deselect" | "toggle";
type MuscleGroup = keyof typeof MUSCLE_GROUPS;
type MuscleSide = "left" | "right" | "central";

interface MuscleMetadata {
  id: MuscleId;
  name: string;
  view: ViewSide;
  side: MuscleSide; // the subject's own side
  group: MuscleGroup;
}

Data exports

Available from the package root and from /data.

Utilities

Contributing

Development needs Node 20+ (Playwright's minimum) and a downloaded Chromium; this is separate from the library's Node 16+ runtime support.

npm install
npx playwright install chromium

npm run typecheck
npm run build          # ESM, CommonJS, UMD, and dist/data/body-muscles-data.json
npm run verify-build   # assert the built artifacts are complete
npm run test:types     # compile a consumer against the built declarations
npm run test:types:min # the same on TypeScript 5.0, the supported minimum
npm run test:selection # selection helper behaviour
npm run test:package   # pack the package and import it from ESM and CommonJS
npm run test:browser   # chart, docs, and accessibility tests in headless Chromium
npm run docs           # assemble docs/lib and serve the site on :3000

Commands after build test the built output, and the examples install the library from this checkout, so build first.

src/
  BodyChart.ts   the chart
  types.ts       public types
  data/          region geometry, metadata, groups, and pairs
  utils/         colour, lookup, validation, and selection helpers
docs/            documentation site: static HTML, one layered stylesheet, ES modules
examples/        runnable vanilla TypeScript and React projects
tests/           browser, selection, and consumer type tests
scripts/         build, verification, docs, and release scripts

Credits

Body Muscles was created by Ivan Vulović as vulovix/body-muscles. The anatomical artwork, the region dataset, and the chart's original design and API are his work.

This fork is maintained by @emmorts and published as @emmorts/body-muscles. It adds keyboard and screen-reader semantics, typed identifiers and metadata, input validation, theming and localization hooks, selection helpers, a data-only entry point, browser tests, and runnable examples; the changelog lists every change.

License

Apache-2.0. The original copyright notice is kept in NOTICE, as the license requires.
